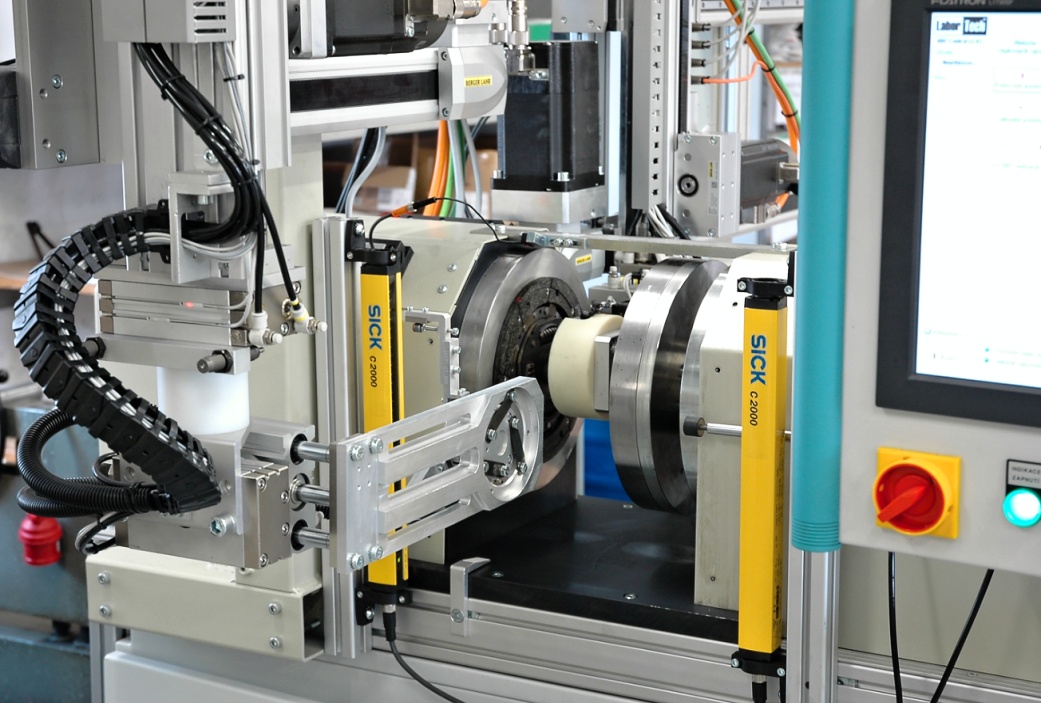

AZS.5 – AUTOMATIC LINES FOR TESTING PKW LAMELLAE

Comprehensive automated line for thermal processing of PKW springs including 100% mechanical spring check with automatic correction according to special dynamic algorithm and special visual camera with 100% control with possibility of division into IO and NIO pieces. The line is made up of several separate parts. The guarantor and creator of the line was LABORTECH.

Features and description:

  • Complete line with the following parts: assembly part of the line (assembly of the blades, plates and lining) test part (mechanical control of the torsion torque of the lamella, control of the suspension, laser description and optical control), separation system at IO, NIO, NIO- B, NIO-C and NIO-D parts.
  • Clutch handling is ensured by continuous high-dynamics manipulators including conveyor belts.
  • Identification and history of parts through LASER
  • SIEMENS Simatic S7 1500 control system incl. LCD, Integrated PC incl. ABCControl, KMTest, etc.
  • Total Taktzeit Line Input – 12sec

Charakteristické vlastnosti:
