Vertical four-column static machine H.2 series

H.2 – Vertical four-column static machine up to 5MN

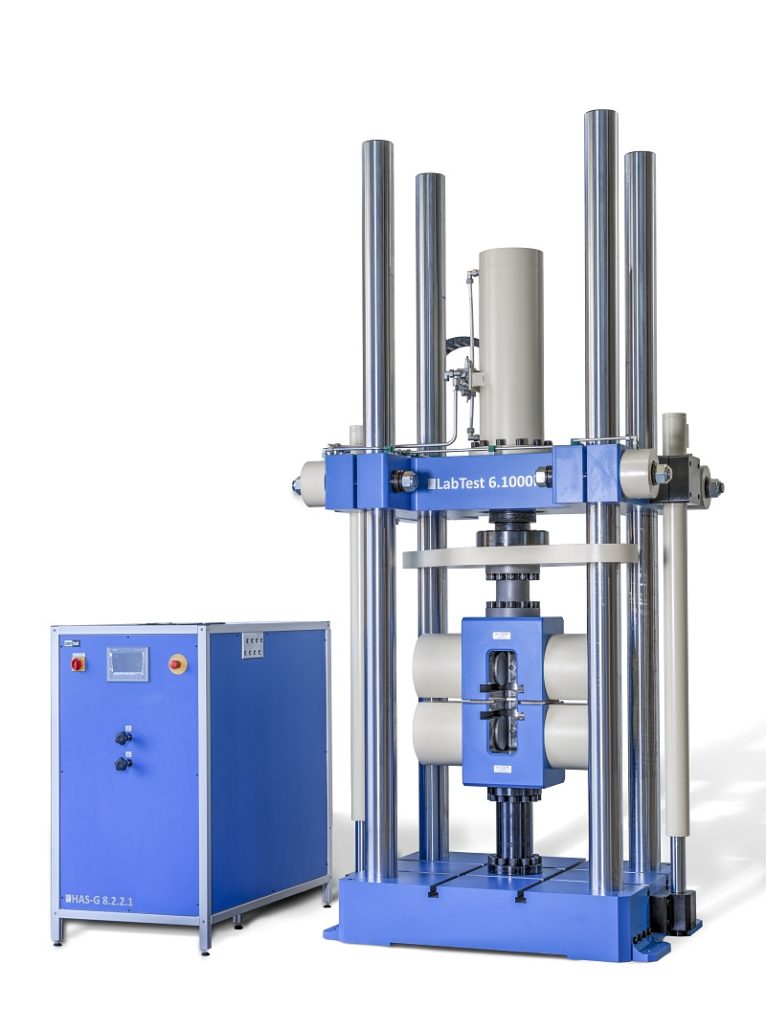

The H.2 servo-hydraulic testing machines in four-column design up to 5MN are designed for safe and efficient testing of materials and whole products in tension, pressure, bending and special testing of high strength materials. This range of machines is characterized by extremely high stiffness and mechanical resistance of the frame. The basic equipment of the machine includes a central silent and economical hydraulic unit with hybrid control of hydraulic grips with diagnostics HALT 18 – SIEMENS.

Main advantages and features:

- Floortop design with four hard chrome guide bars and a fixed crossbar guide
- Modular design – variants of the machine with a fixed or movable crossbar
- High rigidity and mechanical resistance of the machine, combined with high level ergonomics
- Powerful compact hybrid hydraulic units HAS and HAS-G, low noise <65 dB
- Integrated hydraulic grips with wedge or side pressure
- Diagnosis of hydraulic unit HALT 18 SIEMENS in standard
- Integrated new safety interface according to EN ISO 13850
- Accuracy class according to EN ISO 7500-1, ASTM E4:
  - Accuracy class 1 according to EN ISO 7500-1 from 0.3% of load cell nominal range
  - Accuracy class 0.5 according to EN ISO 7500-1 from 1% of load cell nominal range
