More test spaces, expanded test frames…

LABORTECH testing machines allow testing in several workspaces, which significantly increases the efficiency and comfort of the operator. Thanks to this technology, various types of tests can be performed, such as tensile, bending or compression tests, without the need to constantly change fixtures and readjust the equipment.

Multiple workspaces can be placed above each other, next to each other or even outside the main machine structure. For example, the upper space can be used for one test, while the lower space for another, which minimizes downtime and simplifies work procedures. This eliminates lengthy assembly and disassembly operations that would otherwise reduce laboratory productivity.

…we optimize testing machines for your applications…

Another advantage is the possibility of connecting a second force gauge with a different measurement range. Each workspace can thus be optimized for a different load capacity, which expands the variability of testing and allows more accurate measurements under different types of loads.

LABORTECH also offers machines with different test widths and lengths, tailored to specific customer requirements. The exact technical parameters and configuration options of individual models are available in the catalog sheets.

LABORTECH testing machines with multiple workspaces are the ideal solution for laboratories and manufacturing companies that require high efficiency, flexibility and accuracy when testing a wide range of materials and components.

Extended and expanded test workspaces

We always have a solution ready for you, maximum adaptability of testing…

Extended and expanded test workspaces

LABORTECH offers testing machines with extended and expanded workspaces that enable testing of specific samples and optimize testing processes. They also serve to utilize multiple workspaces in one machine.

Extended workspaces are ideal for testing materials such as rubber, plastics, ropes, textile straps, etc. The longer length of the testing space allows for precise analysis of mechanical properties along the entire length of the sample, which is crucial, for example, in the plastics or textile industries.
Extended workspaces allow testing at multiple workstations side by side or testing atypical parts. This concept brings higher efficiency and simplifies sample handling in industries where large-format or unconventionally shaped components are tested.

LABORTECH testing machines with these configurations provide maximum flexibility and customization to customer requirements. Detailed information on configuration options can be found in the product data sheets for individual products.

MEZERA

Upper, lower and side working areas of the machine….

We can eliminate lengthy assembly and disassembly operations thanks to multiple workspaces…

Upper, lower and side work test areas

LABORTECH testing machines enable efficient testing thanks to variable workspaces that can be adapted to different types of tests.

The upper workspace is used for tensile, compression or bending tests without the need to readjust the lower space, thereby minimizing downtime.
The lower workspace is suitable for samples requiring specific clamping or different testing conditions, allowing for simultaneous performance of different tests.
The side workspace ensures easy access to larger samples and facilitates handling, while increasing operator safety.

Thanks to this variability, LABORTECH machines provide comprehensive testing solutions in various industries, with the possibility of individual adaptation to customer requirements. More detailed technical information and configuration options can be found in the product data sheets.

MEZERA

Industrial open work test areas

Open workspaces excel in their flexibility and efficiency…

Industrial open workspaces

LABORTECH testing machines allow for a wide range of applications thanks to their versatile workspaces that can be adapted to different types of tests, such as tensile, compression or bending tests. The modular design facilitates quick machine reconfiguration and minimizes downtime.

The workspaces can be combined with different clamping systems, allowing multiple tests to be performed without complex machine modifications. They are available in various sizes, with detailed specifications to be found in the catalog sheets.

Thanks to this variability, LABORTECH testing machines provide maximum flexibility and accuracy when testing a wide range of materials and components.

MEZERA

2022 - E.3-Zajímavé zákaznické aplikace 2a - 800x600

2022 - E.3-Zajímavé zákaznické aplikace 2b - 800x600

2022 - E.3-Zajímavé zákaznické aplikace 2d - 800x600

High-strength open work test spaces – frames

High-strength frames excel in their versatility, rigidity and durability…

High-strength open workspaces - frames

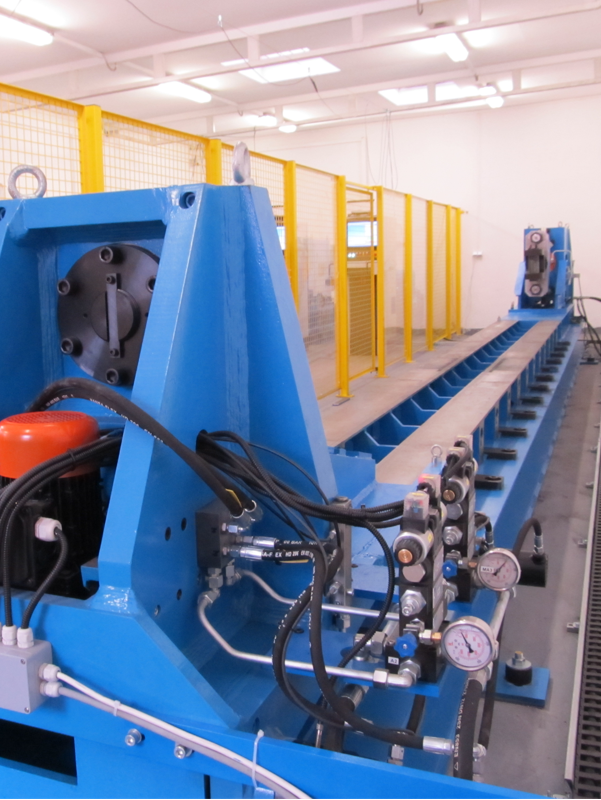

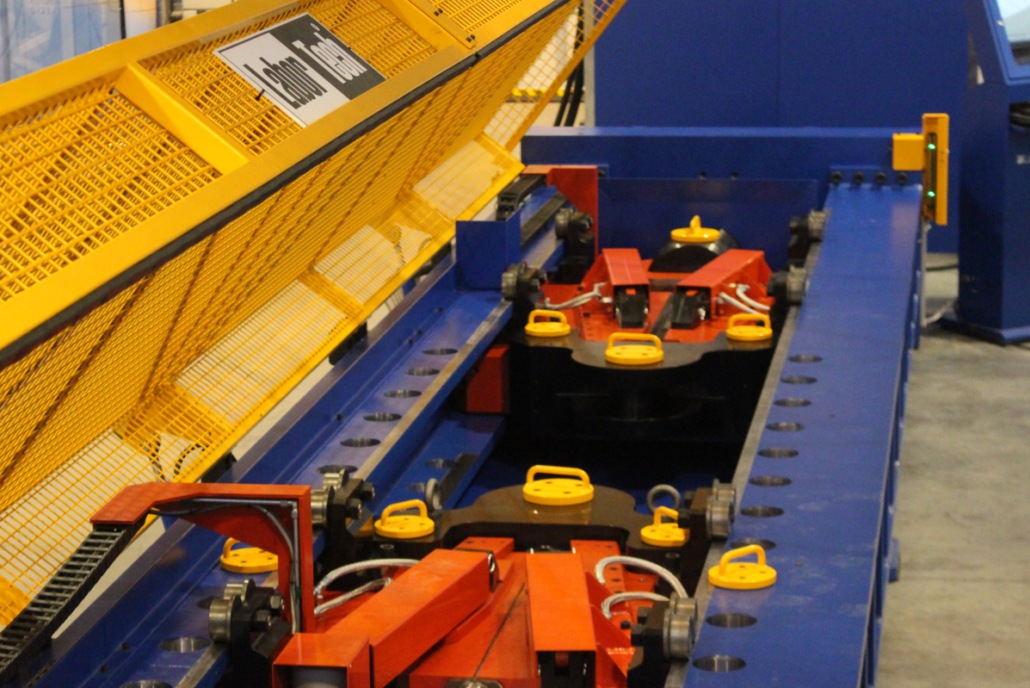

High-strength open workspaces – LABORTECH frames are a key building block of testing systems where precision, durability and safety are paramount. Thanks to their modular design, sophisticated technical solutions and robust design, they are an ideal choice for static and dynamic tests in demanding industrial conditions. Below you will find key features:

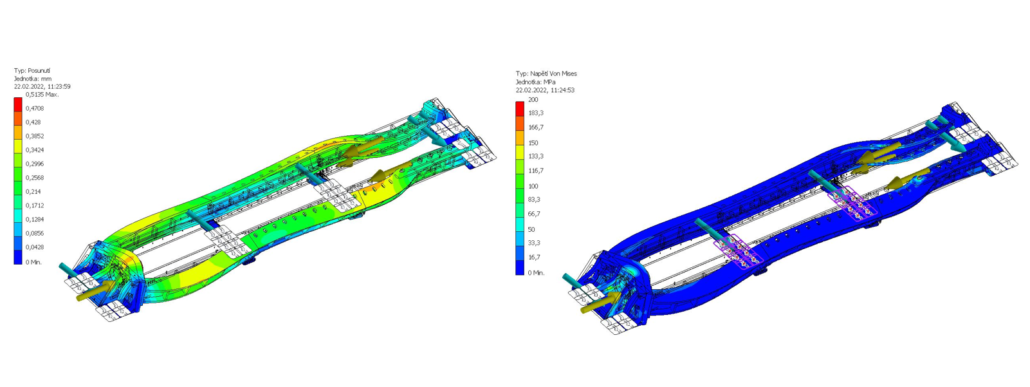

Welded steel structure – extremely strong frame resistant to long-term mechanical stress. FEM optimization – structure designed using finite element calculations for ideal distribution of forces and stresses. Modular frame with a length of 3000 mm – the main axis of the system consisting of a basic segment and two consoles. Console system – prepared for various types of drives (electromechanical, hydraulic, lever). Damping elements – silent blocks or rubber inserts with vibration absorption efficiency over 80%, optionally fixed with anchor bolts. Protective trough – integrated cover of the lower part of the frame, ensuring cleanliness and safety of the workspace. Fixing holes with hardened inserts – 300 mm (axis-axis), for safe and flexible attachment of accessories in dynamic and static mode. Preparation for safety covers – the frame is prepared for easy installation of safety covers according to standards and customer requirements. Two robust crossbars: Movable crossbar – adjustable, guided on covered bearings, with ergonomic handle and locking pins for quick adjustment. Fixed crossbar – designed for the integration of a force sensor, mounted on bearings to ensure accurate measurement.

This frame system is suitable for high-load applications and adaptable to individual requirements – from simple test tasks to fully automated test lines. If you wish, I can also provide technical parameters or an overview of optional accessories.
