HOPKINSON-high-speed shock tests.

Controlled wide range of deformation rates from 100 to 10,000 s⁻¹ …

LABORTECH – World Leader in HOPKINSON High-Rate Impact Testing Systems

LABORTECH is a world leader in the design and manufacture of HOPKINSON High-Rate Impact Testing Systems. High strain rate properties play a key role in the design of safety principles used in transportation, protective system developers and the military.

Our systems, known as HP Test, are configurable for a wide range of strain rates from 100 to 10,000 s⁻¹. This allows us to tailor test conditions to closely simulate real-world conditions. These systems offer infinite variability in clamping any test specimen, data collection and evaluation, and temperature control on the test specimen.

This sophisticated approach to high strain rate testing provides researchers and developers with fast and accurate results. Our models are able to capture the material’s energy absorption, deformation, and viscoelastic response as a function of strain rate and/or temperature. This provides reliable and detailed information needed for the development and optimization of materials in demanding applications.

MEZERA

VIDEO

HOPKINSON UNIVERSAL BASE

HIGH SPEED ACCELERATORS

SPEED MEASUREMENT SYSTEM

MEASURING AND CONTROL ELECTRONICS

HIGH PRECISION SHPB BARS

ACCESSORIES FOR SHPB SYSTEMS

Safety is a top priority at LABORTECH. The company carefully adheres to all safety norms and standards, from the initial design of the test machine to the final production. Each machine undergoes strict checks and tests during the production process, ensuring that the final product not only meets all requirements, but often exceeds them.

Thanks to LABORTECH test machines, customers can be sure that their HP Test machines have passed the best possible tests on the market. This guarantees not only high quality and long-term reliability, but above all maximum safety, which is absolutely crucial for high-speed systems.

In a world where the requirements for safety, reliability and accuracy are constantly increasing, cooperation with LABORTECH is a strategic advantage for anyone who aims to achieve the highest standards of quality and safety.

High Strain Rate Testing Equipment HOPKINSON

All testing machines and automated systems that we develop and manufacture meet the highest requirements for

productivity, quality and reliability of results.

MEZERA

MODULAR BASE FOR MAXIMUM PRECISION

Maximum accuracy, flexibility and readiness for advanced dynamic testing….

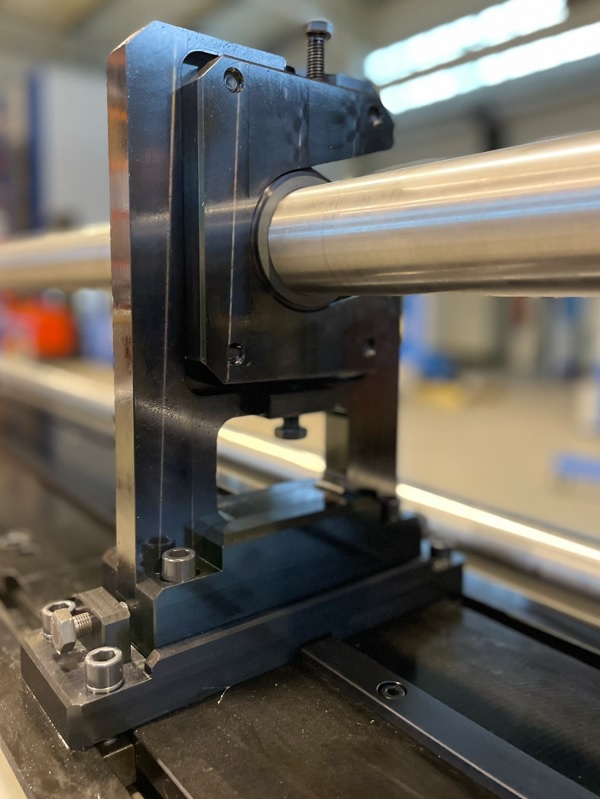

The modular HOPKINSON system base is designed for maximum accuracy and flexibility in dynamic testing. The flat design with T-slot mounting system allows for easy configuration adaptation to specific job site requirements. The modular ground plate system can be expanded in 2000 mm sections, while multi-axis adjustable rod holders ensure precise alignment for repeatable measurement results. Integrated linear rails allow for rapid mounting of workstations, high-speed cameras, lighting and environmental elements while maintaining precise alignment with the sample. The base also includes an integrated machine control in a RITTAL cabinet with preparation for an LCD touchscreen and integrated cable trays for secure cable management..

The main advantages of the system are:

Modular design with the possibility of extension to any length
Precise mounting system in T-slots
Multidirectionally adjustable rod holders for perfect alignment
Integrated linear rails for easy mounting of accessories
Preparation for high-speed cameras, lighting, chambers, etc.
Integrated machine control in an industrial cabinet
Clear and protected cabling organization

The result is a perfectly aligned, flexible and expandable test system ready for precise dynamic measurements and future development of the workplace.

MEZERA

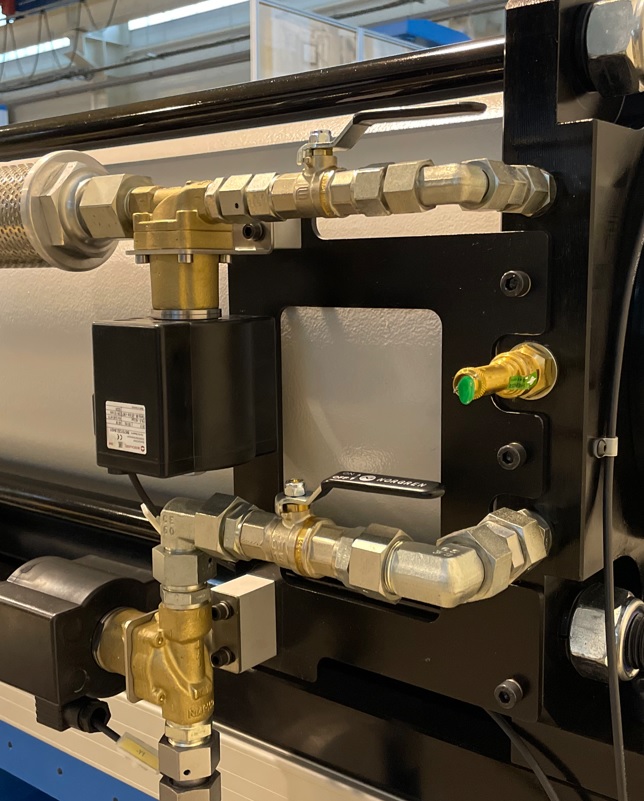

HIGH SPEED ACCELERATERS WITH CONTROLLED PRESSURE

Precisely controlled dynamic pulse generation for repeatable SHPB testing…

Vysokorychlostní pneumatický urychlovač systému HOPKINSON je navržen pro přesné a opakovatelné generování dynamických impulzů při vysoko deformačních zkouškách materiálů. Řízený tlakový systém s vysokorychlostním ventilem zajišťuje rychlou akceleraci impaktoru, zatímco integrované tlakové snímače nepřetržitě monitorují tlakové poměry a stabilitu testu. Systém je doplněn průmyslovým kompresorem pro stabilní dodávku tlaku a vývěvou pro řízené nasávání tyče. Veškeré řízení výstupního i nasávacího tlaku probíhá automaticky prostřednictvím systému Siemens SIMATIC, což zajišťuje vysokou opakovatelnost měření, přesné nastavení parametrů a bezpečný provoz zařízení.

Hlavní výhody systému:

Vysokorychlostní pneumatický urychlovač s přesným řízením tlaku
Extrémně rychlý vysokorychlostní vypouštěcí ventil
Integrované tlakové snímače pro monitoring a diagnostiku systému
Automatické řízení přetlaku i podtlaku
Nasávání tyče pomocí integrované vývěvy
Plně automatizované řízení prostřednictvím SIMATIC
Stabilní provoz díky průmyslovému kompresoru
Vysoká opakovatelnost rychlosti impaktoru a testovacích podmínek

Výsledkem je maximálně stabilní a přesně řízené generování dynamického impulzu pro vysoce opakovatelné SHPB zkoušky i při nejnáročnějších testovacích podmínkách.

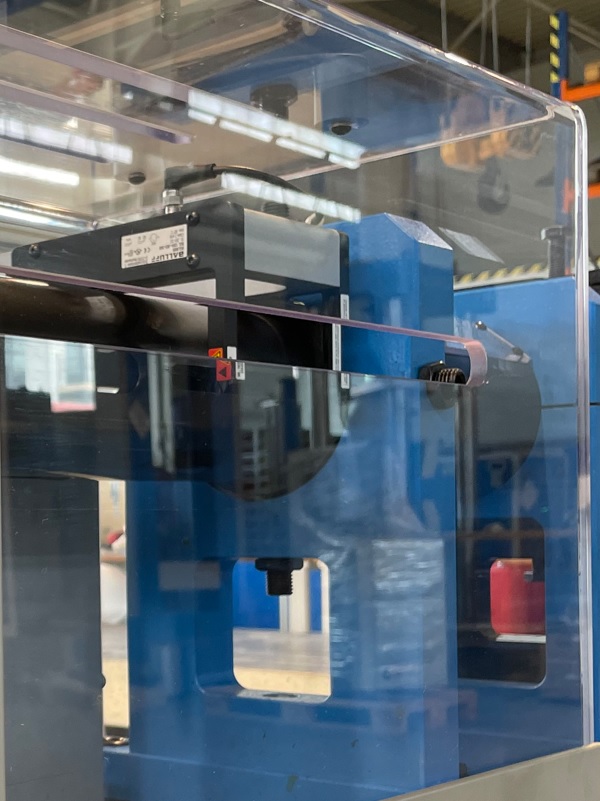

LASER MOUTH VELOCITY MEASUREMENT SYSTEM

Non-contact and precise impactor speed measurement for maximum repeatability of dynamic tests….

Laserový systém měření úsťové rychlosti je navržen pro přesné bezkontaktní měření rychlosti impaktoru v SHPB systémech. Systém využívá dvojici vysokorychlostních laserových snímačů, které sledují průchod impaktoru definovanou měřicí drahou a v reálném čase vyhodnocují jeho okamžitou rychlost před vstupem do testovací části systému. Díky bezkontaktnímu principu měření nedochází k ovlivnění pohybu impaktoru ani ke ztrátě přesnosti při vysokých rychlostech. Konstrukce měřicího systému je integrována přímo do vedení urychlovače a umožňuje přesné ustavení senzorů vůči ose impaktoru. Naměřené hodnoty jsou automaticky přenášeny do řídicího systému, kde slouží pro vyhodnocení testu, kontrolu opakovatelnosti i optimalizaci tlakových parametrů urychlovače. Robustní průmyslové provedení zajišťuje stabilní funkci i při vysokofrekvenčním testování a náročném provozu laboratoře.

Hlavní výhody systému

Bezkontaktní laserové měření rychlosti impaktoru
Vysoká přesnost i při extrémních rychlostech
Okamžité vyhodnocení úsťové rychlosti
Přímá integrace do SHPB systému
Automatický přenos dat do řídicího systému
Stabilní a opakovatelné měření bez mechanického opotřebení

Výsledkem je přesné a plně opakovatelné měření úsťové rychlosti pro spolehlivou kontrolu dynamických SHPB zkoušek.

MEZERA

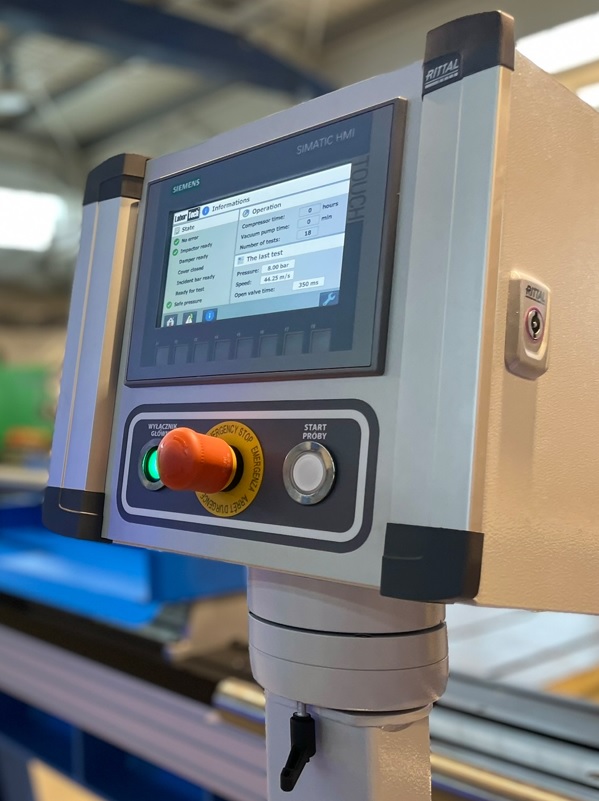

HIGH-SPEED MEASURING AND CONTROL ELECTRONICS

High-speed data acquisition and intelligent control for precise dynamic material testing…

The SHPB measurement and control electronics are designed for extremely fast and accurate acquisition of dynamic events during high strain-rate testing. The system utilizes high-speed measurement modules for capturing signals from strain gauges, laser sensors, and other diagnostic devices with high sampling rates and minimal signal noise. Precise synchronization of all measurement channels enables detailed real-time analysis of stress wave propagation and specimen behavior during the test.

The control system is integrated into the industrial Siemens SIMATIC HMI environment, providing fully automated control of the pneumatic launcher, safety systems, and testing sequences. Operators benefit from an intuitive touchscreen interface for test parameter setup, system monitoring, and data management. The robust industrial design ensures reliable operation even during long-term high-frequency testing.

Key Benefits:

High-speed data acquisition from strain gauges and sensors
Precise synchronization of measurement channels
Low-noise and high-accuracy signal processing
Fully automated test sequence control
Intuitive operation via SIMATIC HMI
Integration of safety and diagnostic functions
Industrial-grade design for continuous operation

Result – Accurate dynamic data acquisition and fully automated SHPB system control for maximum repeatability and reliability of high strain-rate testing.

MEZERA

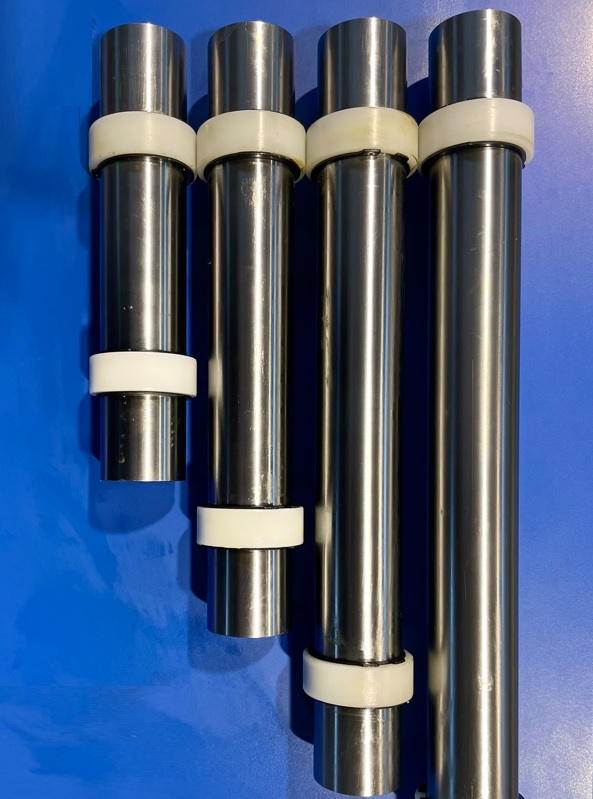

HIGH PRECISION SHPB BARS FOR DYNAMIC TESTS

Optimized solution of hub and measuring rods for precise pulse propagation and reliable deformation recording….

The SHPB system uses specially designed charge and test rods to ensure precise transmission of the dynamic impulse during high-strain material testing. The charge rods are used to generate and guide the impulse wave with minimal attenuation and maximum stability, while the test rods are optimized for accurate sensing of the mechanical response of the tested sample. The test rods are equipped with high-speed strain gauges that enable extremely fast and accurate recording of deformations arising during the passage of the stress wave. The precise placement of the strain gauges and the high-quality surface treatment of the rods ensure high measurement sensitivity, minimal noise and maximum repeatability of the results. The entire rod system is designed with an emphasis on alignment, material homogeneity and geometric accuracy, which is essential for the correct interpretation of dynamic data.

Main system advantages:

Special core rods for stable impulse conduction
Precise test rods for dynamic measurements
High-speed strain gauges for recording deformations
Minimal attenuation and distortion of the stress wave
High repeatability and measurement accuracy
Optimized geometry and system alignment

The result – maximum precision impulse transmission and reliable recording of dynamic deformations for highly repeatable SHPB tests.

MEZERA

ACCESSORIES FOR SHPB SYSTEMS

Expanding testing capabilities for detailed analysis of materials in extreme conditions…

The SHPB system can be supplemented with a wide range of specialized accessories that expand the possibilities of dynamic testing and enable detailed analysis of the behavior of materials at high deformation rates. The system can include, for example, video extensometers for non-contact measurement of sample deformation, high-speed cameras for recording the test process, or optical systems for advanced evaluation of deformations and crack propagation. To test materials under various operating conditions, the system can also be equipped with temperature chambers or local heating of the sample, which allow testing at high and low temperatures. The modular design of the SHPB system also allows easy integration of other measuring, environmental, and diagnostic elements according to the specific requirements of the customer or research center.

Main system advantages:

Video extensometers for non-contact deformation measurement
Integration of high-speed cameras
Temperature chambers for testing at extreme temperatures
Possibility of local heating of the sample
Expansion with optical and diagnostic systems
Modular integration of accessories according to application requirements

Result – Maximum flexibility of the SHPB system for precise dynamic testing in a wide range of test and environmental conditions.
