High temperature furnaces to 2000°C
High temperature furnaces from LABORTECH are used to determine thermoplastic behaviour, heat resistance, heat hardness and recrystallization temperature of materials and whole products. Depending on the material to be tested, one to three zone furnaces operating in the temperature range of 200 ° C to 2000 ° C can be selected.
High temperature furnaces …
… Safety, accuracy and speed, these are our criteria for high temperature furnaces…
Our dealers and application technicians will be happy to advise you on how to choose the right temperature chamber that fits your requirements and needs.

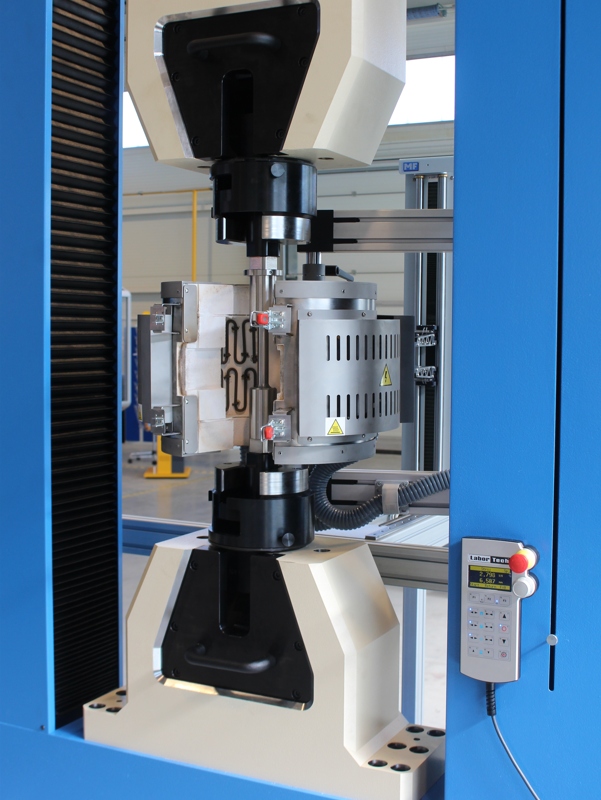

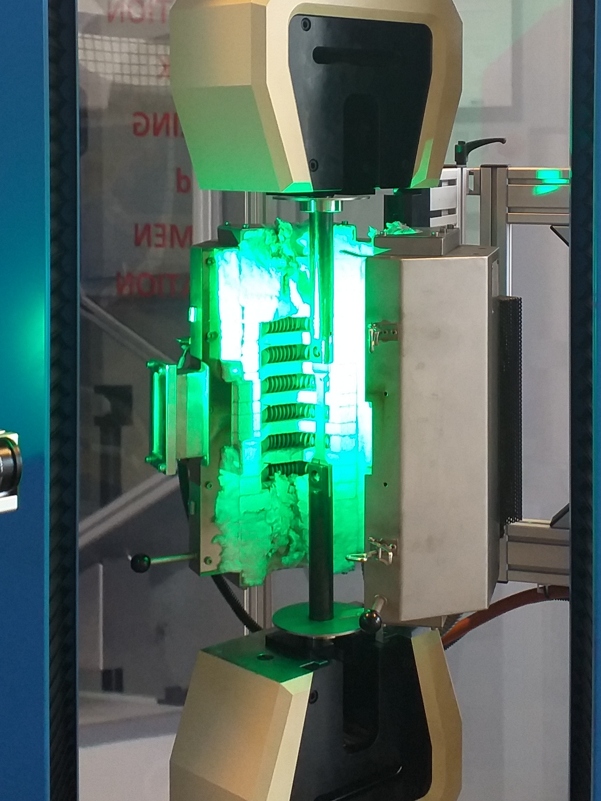

High temperature furnaces for tensile, pressure and long-term tests
… we can perfectly precisely control the temperature in individual temperature zones …

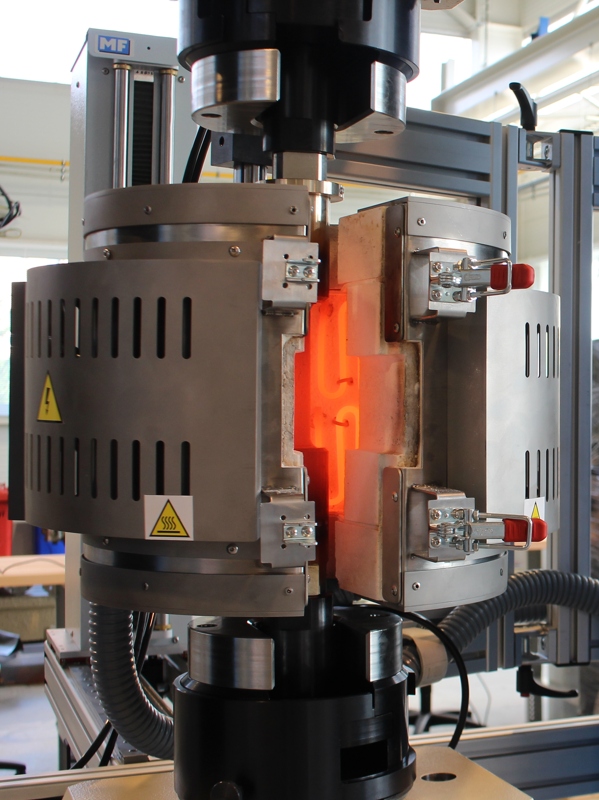

HIGH TEMPERATURE FURNACES up to +1600°C – STANDARD TESTS
Description:
High quality of technical workmanship with ideal ergonomic layout and CE-compliant design. 1, 2, 3 zone design. Stainless steel shell. Possibility to set individual temperature zones separately. Fast and constant rise to the desired temperature. temperaturetemperature
Temperature range:
.100°C to 1600°C
Application – Standards:
Universal, temperature control according to EN ISO 6892-2, ASTM E21.
Expandable accessories:

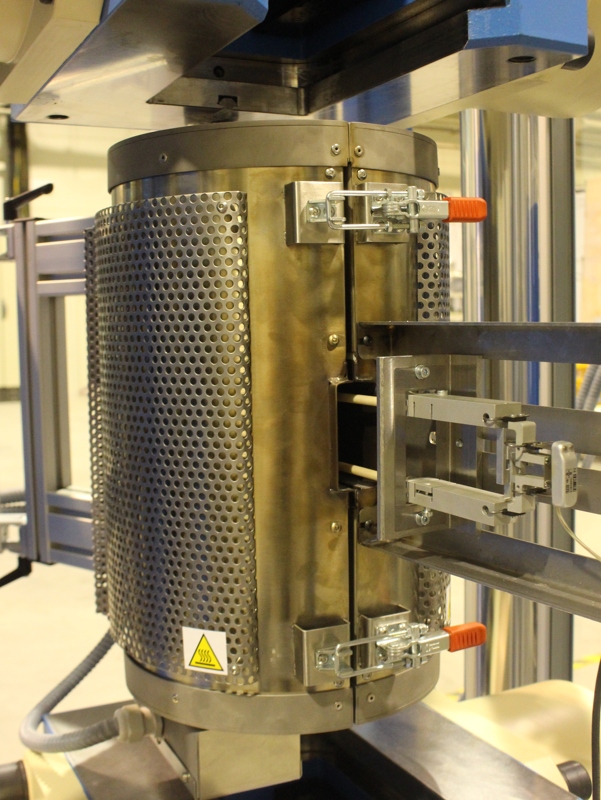

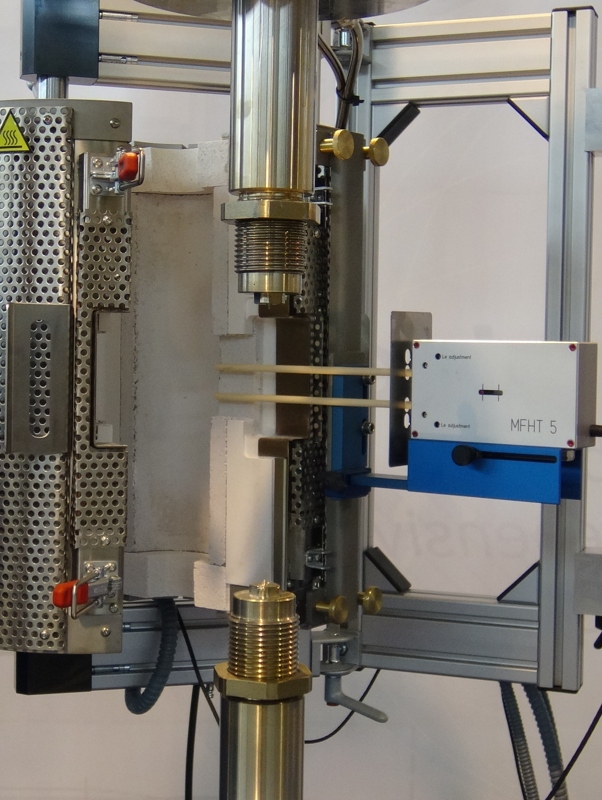

Special glass for deformation detection using VIDEO Extensometer HT. Visors for ceramic jaws of mechanical extensometers. Temperature controller TC-22. Preparation for cooling elements. Precise ergonomic tripods with subsequent position fixation. Possibility to extend with additional thermocouples

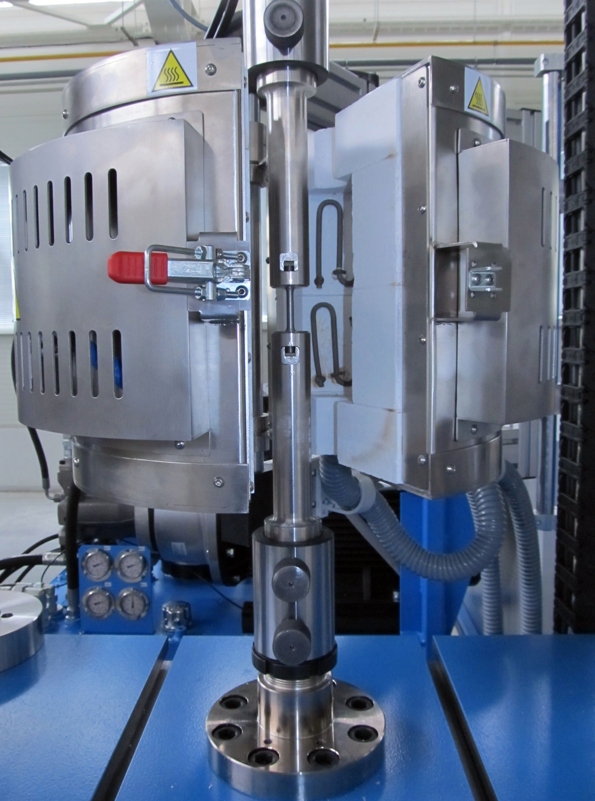

HIGH-TEMPERATURE FURNACES up to +1300°C – CREEP LONG-TERM TESTS
Description:
High quality of technical workmanship with ideal ergonomic layout and CE-compliant design. 3 zone design for long-term tests with a heating zone of up to 300 mm. Stainless steel shell. Possibility to set individual temperature zones separately. VysokoteplotníVysokoteplotní
Temperature range:
.100°C to 1300°C
Application – Standards:
Long-term tests, temperature control according to EN ISO 204, ASTM E139
Expandable accessories:
Special glass for deformation detection using VIDEO Extensometer HT. Visors for ceramic jaws of mechanical extensometers. Temperature controller TC-22. Preparation for cooling elements. Precise ergonomic tripods with subsequent position fixation. Possibility to extend with additional thermocouples.

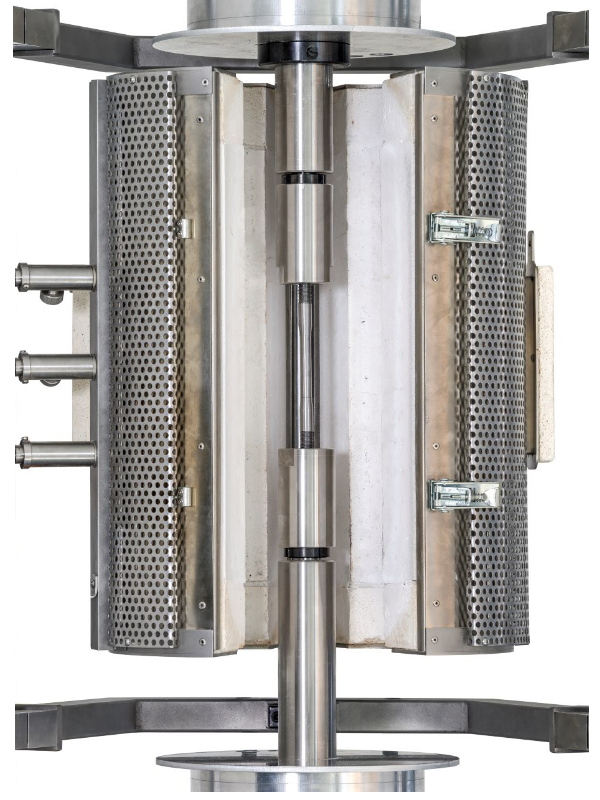

SPECIAL HIGH-TEMPERATURE FURNACES up to +2 000°C
Description:
High quality of technical workmanship with ideal ergonomic layout and CE-compliant design. 1, 2, 3 or 4 zone design. Stainless steel shell. High-temperature furnaces openable or fixed with atypical dimensions. Possibility to set individual temperature zones separately.
Temperature range:
.100°C tos 2000°C (customer’s request)
Application – Standards:
Universal, according to customer requirements
Expandable accessories:
Special glass for deformation detection using VIDEO Extensometer HT. Visors for ceramic jaws of mechanical extensometers. Temperature controller TC-22. Preparation for cooling elements. Precise ergonomic tripods with subsequent position fixation. Possibility to extend with additional thermocouples.
