AZS.7 – AUTOMATIC LINE FOR TESTING AND ADJUSTMENT OF PKW LAMELLAE – XTD

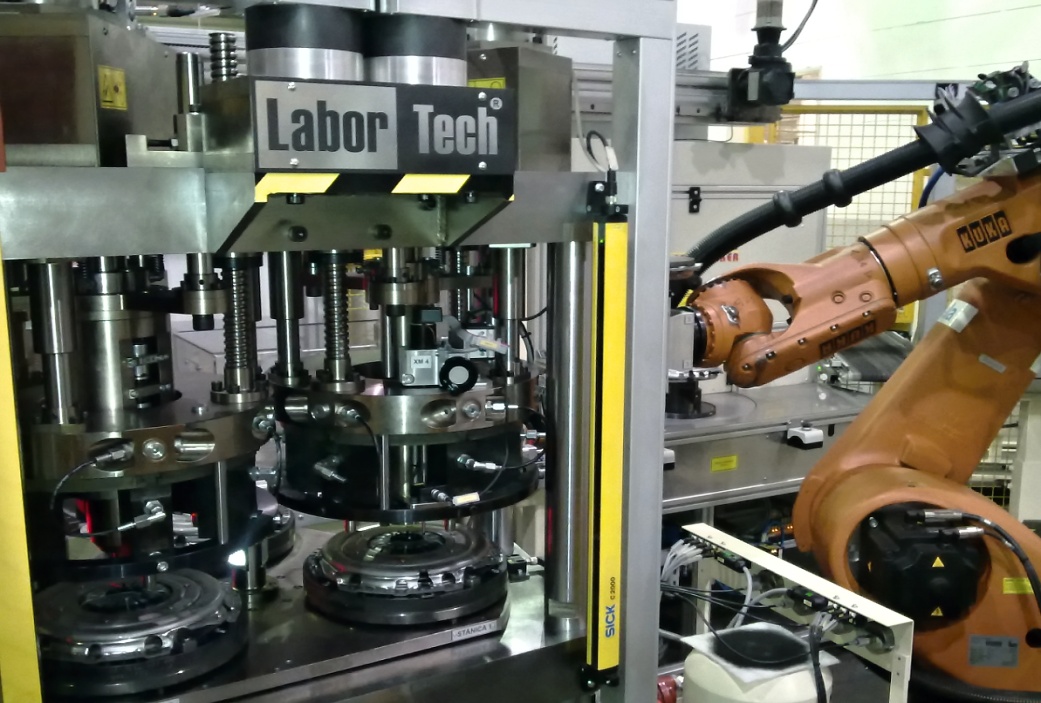

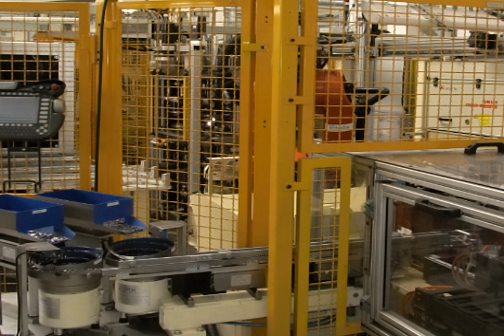

Complete automated line for production and 100% mechanical inspection and adjustment of PKW couplings including balancing according to special dynamic adjustment algorithm and special camera control with the possibility of division into IO and NIO + and NIO-pieces. The line is made up of several separate parts. LABORTECH ensures the functionality of the entire line.
Features and description:
- Complete line with these parts: assembly part of the line (assembly of the lid, pressure plate and springs) testing part (mechanical inspection including adjustment, clutch balancing, XTD fixation, preservation), split system on IO, NIO + and NIO parts.
- SIEMENS Simatic S7 1500 control system incl. LCD, integrated PC incl. software BALANCERTest, EDHTest, etc.
- Identification and history of parts through MARKRATOR

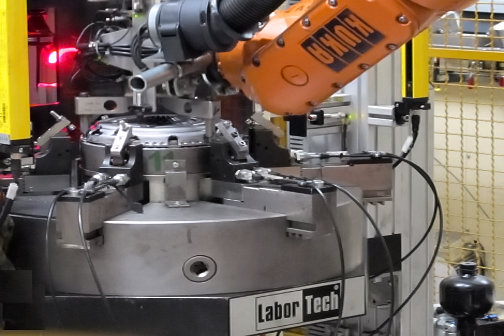

- Clutch handling is ensured by the KUKA robot and continuous manipulators including conveyor belts.
- Total Taktzeit Input Line – 28sec
