AVS. 6 – AUTOMATIC BALANCING MACHINE WITH CORRECTION BY DRILLING – CONVEYOR SYSTEM

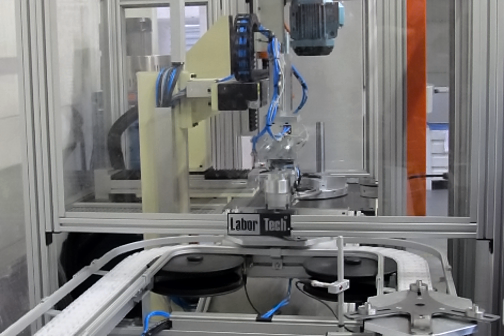

Fully automatic vertical balancing machine VSTest designed for balancing PKW pressure discs with automatic loading and unloading of parts from the conveyor system, selection into IO and NIO pieces. The balancing machine has a fully automatic cycle, i.e., the pressure disk is loaded with a conveyor manipulator into the machine, it detects unbalance, corrects it by drilling in a precisely defined place, performs a control measurement and automatically stores the IO pieces back to the conveyor. The operator only fills and empties the conveyor.

Characteristics and description:

    • Vertical balancing machine with 1-plane measurement with fully automatic operation.
    • Correction of unbalance by a drilling unit with a suction device with efficiency of more than 95%
    • Automatic centering and clamping of the pressure plate, including fixing during drilling.
    • SIEMENS Simatic S7 1500 control system incl. LCD.
    • Destination – AUTOMOTIVE
    • Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software in the base of the machine.
