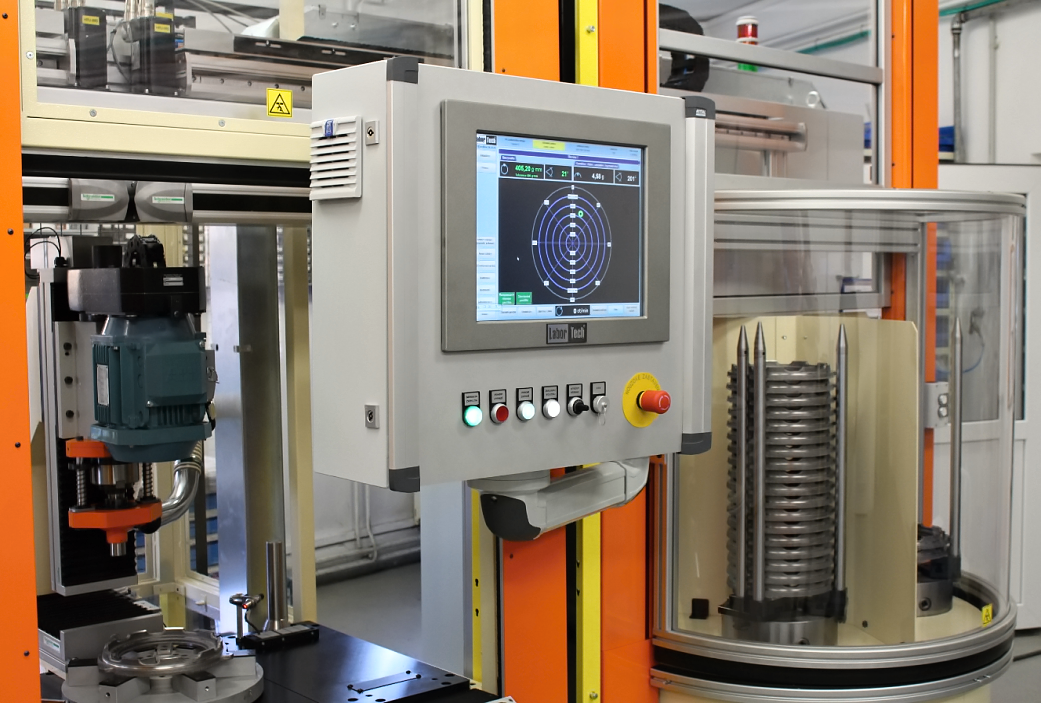

AVS. 5 – AUTOMATIC BALANCING MACHINE WITH CORRECTION BY DRILLING – BY MANIPULATORS AND TRAYS

Fully automatic vertical balancing machine VSTest designed for balancing PKW pressure discs with automatic loading and unloading of parts from and into trays, dividing them into IO and NIO pieces. The balancing machine has a fully automated cycle, i.e. it inserts a piece from the tray into the machine, detects unbalance, corrects it by drilling at a precisely defined place, performs a control measurement, and automatically stores the IO pieces in the stack. The operators only fills and empties the containers with parts in batches.

Characteristics and description:

    • Vertical balancing machine with 1-plane measurement with fully automatic operation.

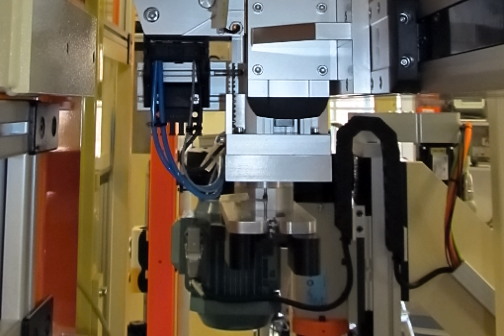

    • Correction of unbalance by a drilling unit with a suction device with efficiency of more than 95%
    • Automatic centering and clamping of the pressure plate, including fixing during drilling.
    • SIEMENS Simatic S7 1500 control system incl. LCD.
    • Destination – AUTOMOTIVE
    • Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software in the base of the machine.
