AVS. 4 – AUTOMATIC BALANCING MACHINE WITH CORRECTION BY DRILLING – BY MANIPULATOR AND IO TRAY

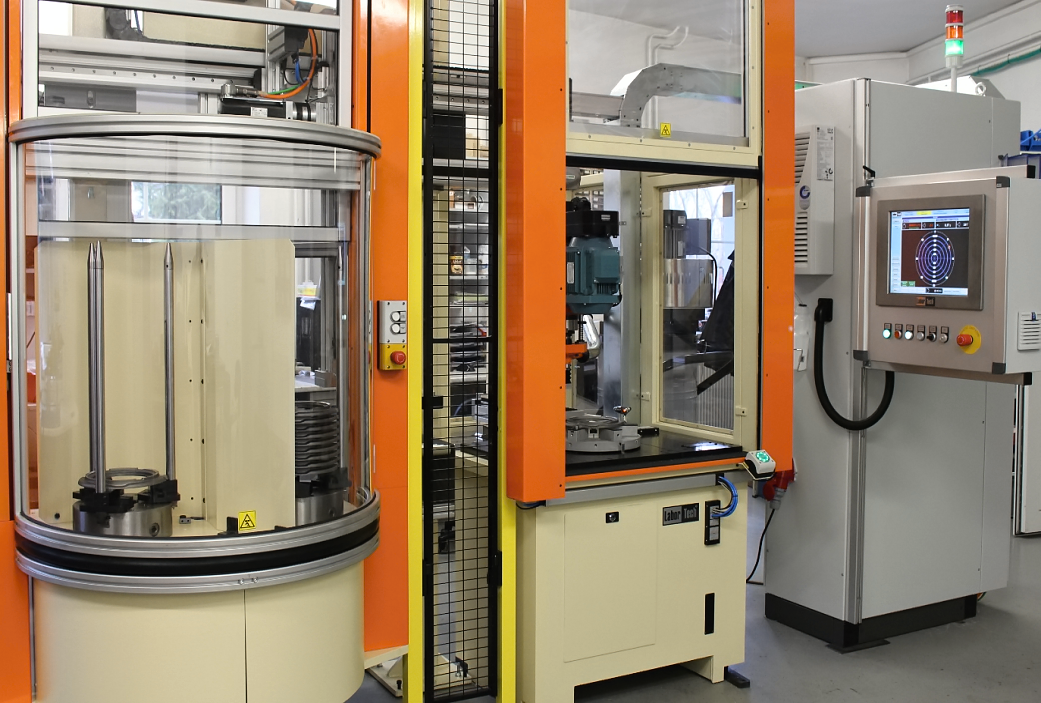

Semi-automatic vertical balancing machine VSTest designed for balancing PKW pressure discs with automatic unloading tray and selection into IO and NIO pieces. The balancing machine has a fully automated cycle, i.e. it detects an imbalance, corrects it by drilling at a precisely defined place, performs a control measurement, and automatically stores the IO pieces in the stack. The operator only inserts the parts.

Characteristics and description:

    • Vertical balancing machine with 1-plane measurement with manual loading and automatic unloading

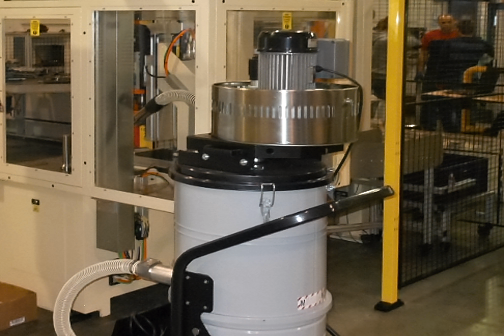

    • Correction of imbalance by a drilling unit with a suction device with efficiency of more than 95%

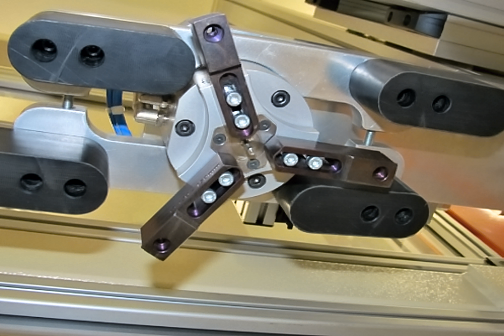

    • Automatic centering and clamping of the pressure plate pneumatically including fixing during drilling
    • Machine calibration in accordance with ISO 21940-21
    • SIEMENS Simatic S7 1500 control system incl. LCD.
    • Destination – AUTOMOTIVE
    • Control of the machine via touch screen LCD and PC with BALANCERTest – BASIS software in the base of the machine.
