Over the course of almost 30 years of our existence, we have become specialists in mechanical testing of components for AUTOMOTIVE exteriors, i.e. body panels, body welds, lights, jacks, etc. for the VW, ŠKODA, HYUNDAI, etc. groups. Our machines are primarily used for input and continuous inspections and, thanks to their accuracy and speed, they reveal inhomogeneity of materials, processes and parts.
We are proud to have contributed our long-term development and expertise to the inspection of such important products that are part of the exterior of the automotive industry for more than 3 decades.
Below you will find just a small part of the machines that our company has manufactured in the AUTOMOTIVE industry. If you are interested, our sales and application engineers will be happy to provide you with more information.
TESTING OF VEHICLE AXLE JACKS – COMPACT SYSTEM LabTest 6.100.9 AXLE – J
Description:
This robust device is designed for demanding off-axis loading simulations up to 100 kN and offers unique technological solutions in the field of durability and reliability testing of automotive components. The device allows for the simulation of loads in the Z direction thanks to a sophisticated system that works in both force and position coupling. Movements in the X and Y directions are ensured by powerful AC servomotors that accurately simulate real conditions. Accurate measurement of off-axis loading is achieved by three force gauges mounted at 120°. The system is equipped with a controlled drive shaft with torque measurement that allows for the simulation of the axle lift drive during testing. The system is equipped with a controlled drive shaft with torque measurement th
Features:
Advanced system control is implemented via a PC with a TOUCH LCD monitor.
Simulation of various jack load conditions for SUVs, electric cars…
Allows you to perform load curves at different vehicle load levels, such as empty, partially loaded or fully loaded.
Force and travel measurement system in accordance with EN 7500-1, ASTM E4 and EN 9513, ASTE E83 standards
AXJTest intuitive control software.
Usage – Standards:
Internal regulations according to BMW, Mini and Rolls Royce – WAGENHEBERLASTKURVEN G45 PHEV and other regulations
Expandable accessories:
Various types of test fixtures and supports, non-contact temperature sensors, VIDEO Extensometers, various types of clamping jaws and fixtures, QR code readers …
AUTOMOTIVE SHOCK ABSORBER TESTING – LabTest EP 6.10-100-2 SYSTEM
Description:
The LabTest EP 6.10-100-2 testing machine is a top-of-the-line device for dynamic testing of shock absorbers and suspensions. It combines high performance, low energy consumption and easy installation, making it ideal for development and quality control. The device reaches a frequency of up to 150 Hz and allows optimization to 15 Hz at a stroke of ±50 mm. The measurement speed ranges from 0.05 to 1.0 m/s, optionally up to 1.5 m/s. The automatic crosshead set-up controlled by PLC ensures easy and flexible setup. The upper sample mounting is solved by threaded or conical inserts, the lower one by a clamping crosshead. . The DYNTest software provides an intuitive interface for control, data acquisition and analysis, thus ensuring efficient testing of shock absorber performance and safety.
Features:
Simulation of dynamic loading of the shock absorber up to a force of 10 kN, frequency 15Hz
Test speed 1.5m/s, test stroke +- 50 mm at a frequency of 15Hz
Advanced system control is implemented via a PC with a TOUCH LCD monitor.
Force and travel measurement system in accordance with EN 7500-1, ASTM E4 and EN 9513, ASTE E83 standards
Intuitive control software DYNTest.
Usage – Standards:
Internal regulations and orders of automotive shock absorber manufacturers who need to test shock absorbers in dynamic mode…
Expandable accessories:
Various types of test fixtures and supports, non-contact temperature sensors, VIDEO Extensometers, various types of clamping jaws and fixtures, QR code readers …

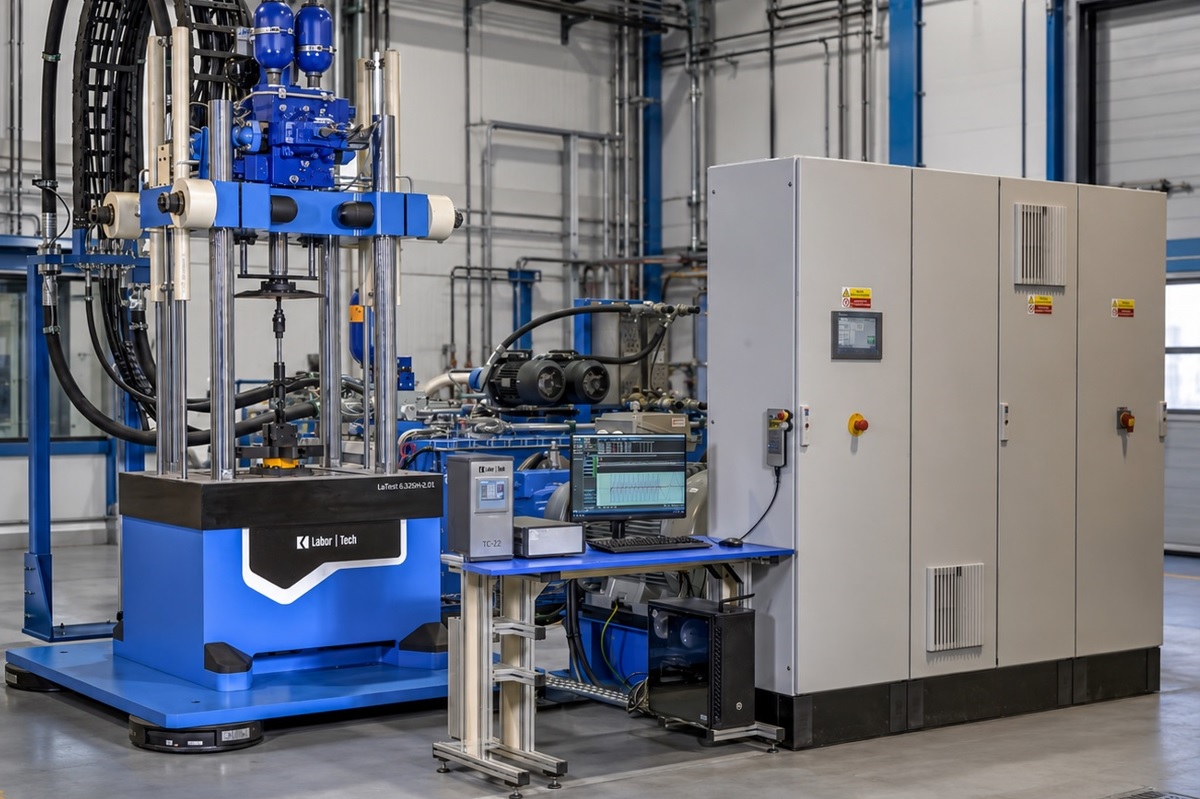

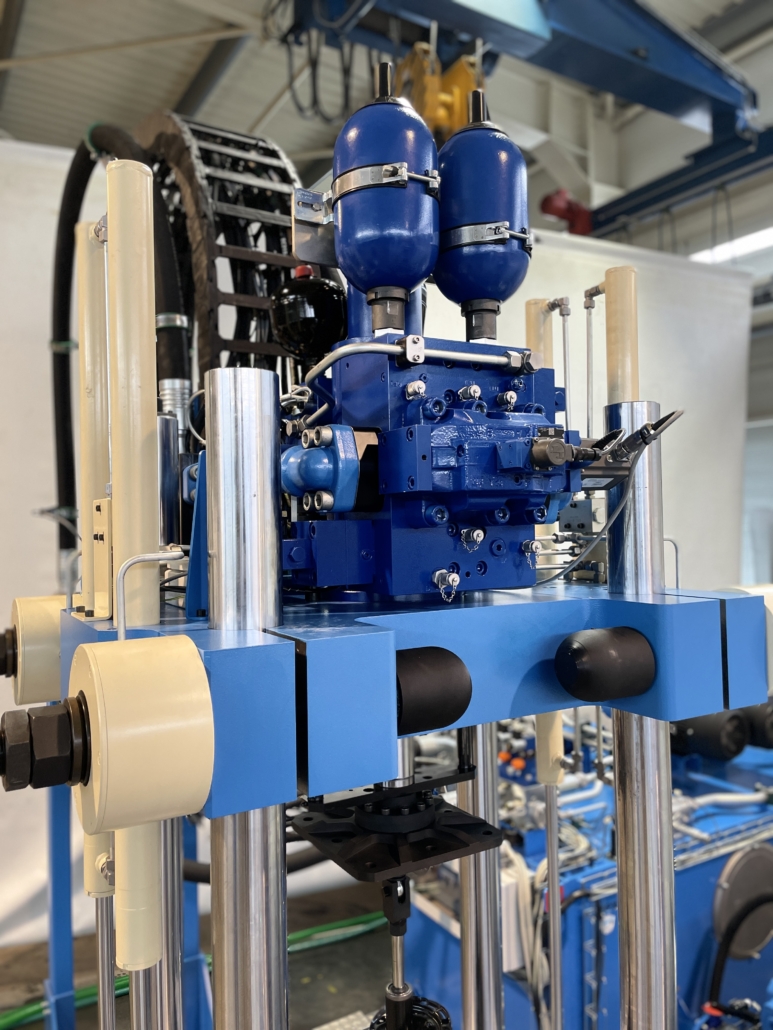

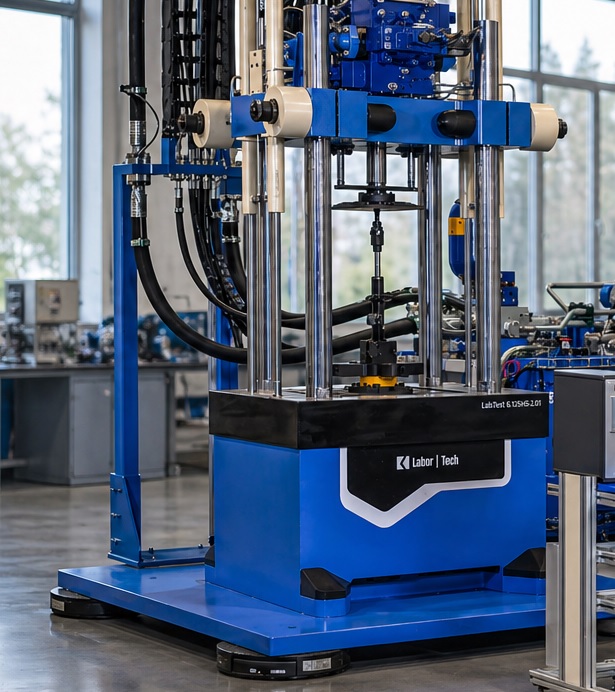

HIGH SPEED SHOCK ABSORBER TESTING – LabTest 6.125H.5 SYSTEM
Description:
These systems enable testing at speeds of up to 20 m/s and accelerations of 500 m/s², i.e. in conditions corresponding to accidents, crash tests or extreme operational stress. This is when phenomena arise that static tests do not reveal, yet fundamentally affect the safety and service life of products. The key advantage is not only high speed, but the combination of extreme dynamics with precise measurement and high repeatability of results. The frame, hydraulic system and measuring electronics form a synchronously working unit. The automatic crossbar set-up controlled by a PLC ensures quick setup. The DYNTest software offers intuitive operation, data collection and analysis of results.
Features:
Simulation of dynamic loading of the shock absorber up to a force of 50 kN
Test speed 5m/s, test stroke +- 75 mm at a frequency of 15Hz, 500m/s2
Advanced system control is implemented via a PC with a TOUCH LCD monitor.
Simulation of various loading conditions, for example, testing shock absorbers for various types of vehicles, including SUVs, electric cars and plug-in hybrids.
Force and travel measurement system in accordance with EN 7500-1, ASTM E4 and EN 9513, ASTE E83 standards
Intuitive control software DYNTest.
Usage – Standards:
Internal regulations and orders of automotive shock absorber manufacturers who need to test shock absorbers in dynamic mode …
Expandable accessories:
Various types of test fixtures and supports, non-contact temperature sensors, VIDEO Extensometers, various types of clamping jaws and fixtures, QR code readers …
DEEP-DRAWN SHEET METAL TESTING – ŠKODA AUTO REFERENCE LABORATORY
Description:
The electromechanical testing machine LabTest 6.100 is designed for comprehensive evaluation of the formability of metal sheets according to EN ISO 6892-1, ISO 16842 and EN ISO 20482 standards. It enables precise tensile, biaxial tensile and indentation tests. It is equipped with Test&Motion+ software with relevant modules, clamping jaws with pressure regulation for various surface treatments and deformation measurement using strain gauges or video strain gauges. It automatically evaluates the parameters of plastic anisotropy (r) and strain hardening (n). Easy installation of the fixtures and compliance with EN 7500-1 and EN 9351 standards ensure universal use in laboratories and testing rooms.
Features:
Electromechanical testing machine extended with a range of accessories.
Clamping jaws with pressure control for clamping ZE (EN 10152), Z, ZM (EN 10346) and AlSi (TL 4225).
Measurement of actual plastic deformation of width and thickness using transverse and longitudinal extensometer or video extensometer
Automatic evaluation of the plastic anisotropy coefficient r and the strain hardening exponent n
Easy installation of the Erichsen indentation test fixture
Force and travel measurement system in accordance with EN 7500-1, ASTM E4 and EN 9513, ASTE E83 standards
Application – Standards:
Testing of standardized samples in accordance with EN ISO 6892-1, ISO 10113, ISO 10275 and EN ISO 20482
Expandable accessories:
VIDEO Extensometers, various types of clamping jaws and fixtures, special robotic workstations X-RUNNER, hybrid hydraulic units, QR code readers..
